Ranged Optimization

Maximize a signal within a range.

Sweeps a setting \(z\) within a discrete interval \(I\), measures an optimization quantity \(f(z)\) and calculates \(z_0\) such that:

$$f(z_0) \geq f(z) \, \, \, \, \, \, \forall z \in I$$

finally sets \(z = z_0 + z_{offset}\).

Add to your app:

    def setup(self):

        from ScopeFoundry import RangedOptimization

        self.add_measurement(RangedOptimization(self))

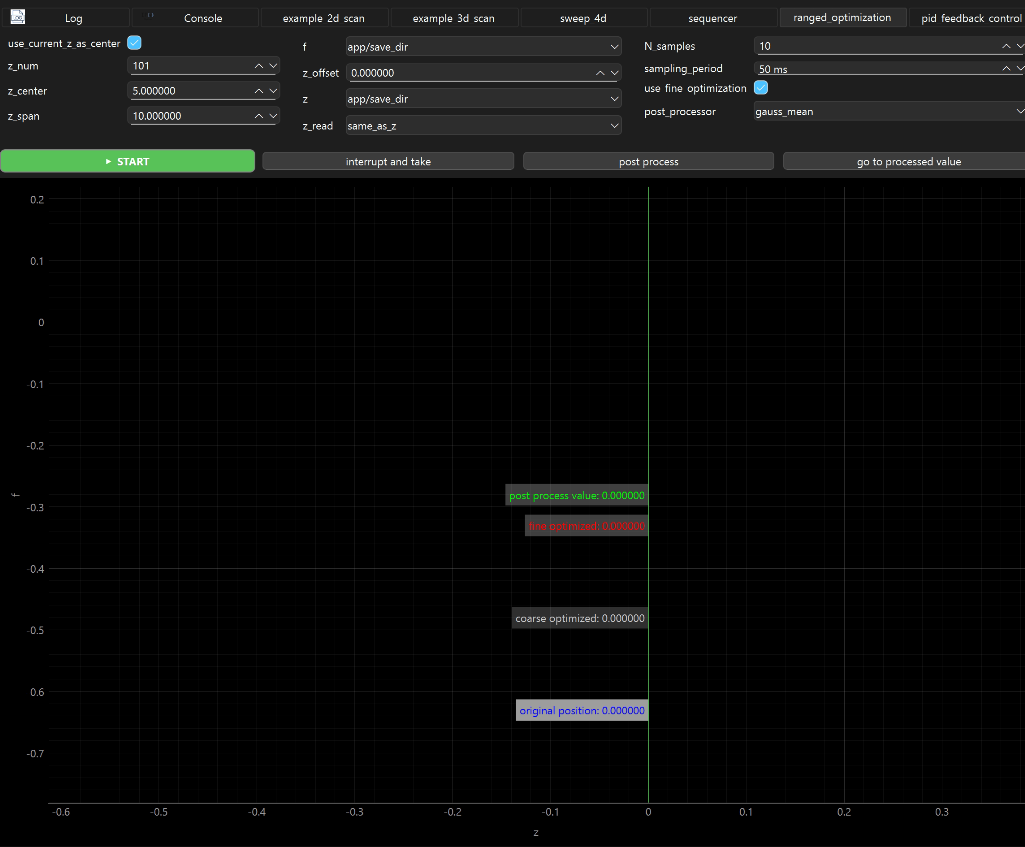

overview

The interval \(I\) is defined by \((z_{center}, z_{span}, z_{num})\).

You can further post process the data to get a more accurate \(z_0\).
